Navigate the microwavetechnology story. Each section explains the purpose, the mechanism and the correct media placement.

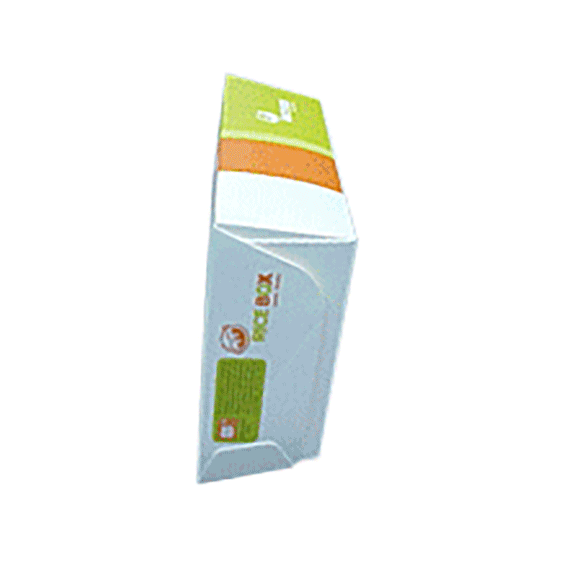

TicTob Healthy Pack is uniquely designed in a shape of a trapezium, so that, when closed, is able to keep temperature, hot or cold, at extended hours.

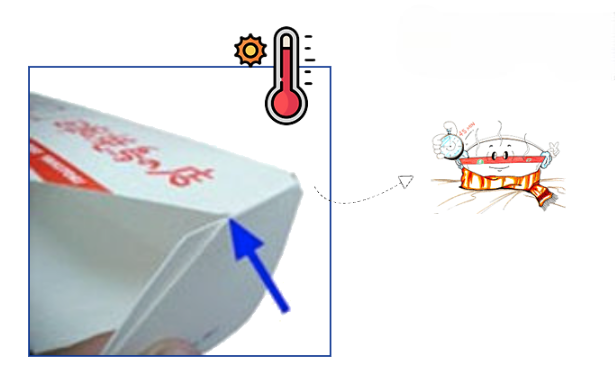

When closed, the walls of the base, which is Tapered-Outwards, spiked into the acute angel of the cover that is tapered-Inwards. Preventing temperature from escaping out of box. (See arrow)
Such design also prevents contaminations entering from outside the box. E.g. dust or crawling insects, especially during outdoor activities.
Keeping warm up to 4 hrs, it was awarded the winning choice for out-ration container used by the Singapore Military.
Big-top, small-bottom construction and wrap-around cover create a secure interlock. The pack closes quickly, stacks stably and reduces accidental opening during transport.
So, when closed, the cover wraps around the base unit tightly forming an interlocking cooperation.
During opening, press inwards the thumb hole of the base unit, the top (mouth) of the base unite becomes smaller than the (mouth) of the cover to open.
Operation simplicity and maximum safeties, opening and closing a thousand times..
“C.Box” design needs more than 10 seconds to close a box
Weak stacking capabilities
Leaks are prone to contaminations.

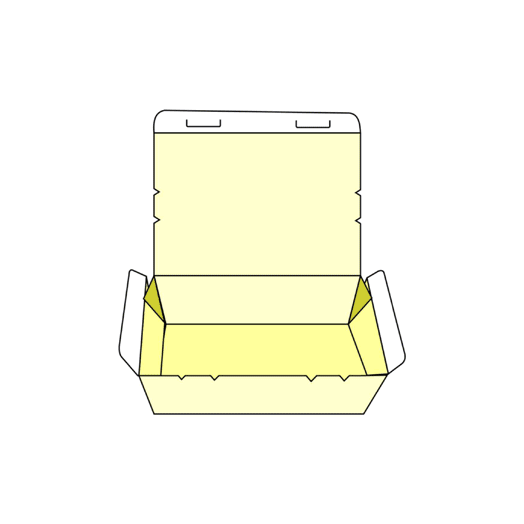

Commonly known as “C.Box” as it is popular in China. This design is difficult to use as the closing process is complicated and slow.
4 sets of Tabs and Slops need to be bending, folded and push into interlock.

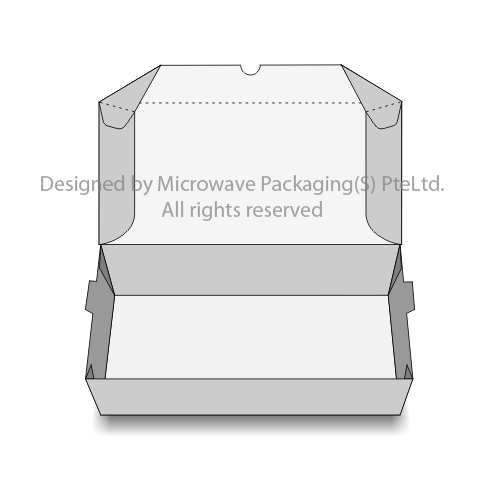

One of its unique feature of a trapezium shape is its “Big Top, Small Bottom” construction. The base of the cover is designed smaller than the top (mouth) of the base unit.
Due to its patented cover that wrapped around the base when closed, combined with its trapezium shaped design of a “Big Top, Small Bottom”.

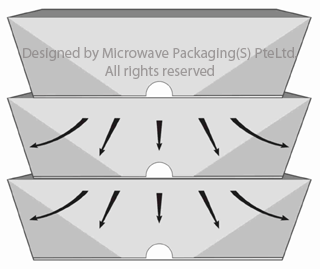

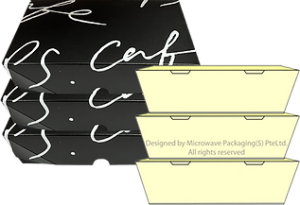

When stacked, the Small Bottom of the box above sits on the Big Top of the box below. Compression from the weight above creates a depression ‘hole’ and at the same time, effectively spreading evenly outwardly, working like a LEGO, maintaining an upright perpendicular position sturdily.
As such, stacked HealthyPack does not topple easily as compared to Non-wrapped around “Cover Over Base” design type of packaging.
When food is hot that is steam, steam creates internal cooking if box no breath. Because it is built with 2 air valves. To release excessive steam, prevent COP inside box, thus, food remains warmer longer, retaining its original texture and taste.
*something most F&B’s over looked or does not aware of COP effects.
From Single Compartment to Multiple Compartments, providing more choice and better experience when eating out of pre-packed meals.
Microwave Packaging Singapore not facilitates the sensation of possibilities imaginable; we also create the art of cooking inside the microwave oven, turning possibilities from unimaginable.
See illustration.
Multiple compartments are separated by ‘bridge’ that is 100% leak proof. It also providers a ‘V’ shape air gab isolating temperature cross over’s maintaining food that is Hot to remain hot, Cold to remain Cold by as much as possible.
HealthyPack’s multiple compartments bento box it not just for take-away cooked meals BUT also a magnificent cooking utensils inside the microwave oven
Winner of the prestigious ‘POS’ Point Of Sales award during the World Star packaging competition –
Beijing / Tokyo.
Merits of the award were due to HealthyPack’s unique design construction.
When on shelves, whether at the lowest or at the top most level, its advertisements remains clearly visible to passing consumers disregards whether if they are standing near or afar from the shelves.
Note: indicated with ‘0’ and ‘X’ are expiry dates that are easily distinguished and segregated.
This is because, HealthyPack’s stands at a tilt, angulated in a way, ‘facing up’ to the consumers fully presenting its advertisements extending maximum sales potential, unlike those that stands in a perpendicular posture.
From Factory to Shelves, from shelves to Freezer, from Freezer to Microwave, from microwave to table and back to freezer to ‘eat later’ makes ready meals packed inside HealthyPack one of the most effective form of packaging in the ready meal industry.
Whether Single or Multiple compartments, when coupled with assorted cooking technologies, more innovative types of HealthyPack Ready Meals can be created in the future.
A revolutionary concept in the ready meal industry that provides maximum choice of mix and match your taste buds.
Wide selections of (A) + (B) > pour into box, microwave 2 mins > ready to serve.
A) One pouch of Rice or Noodle + (B) One pouch of Gravy or sours
Both (A) and (B) are packed inside the HealthyPack

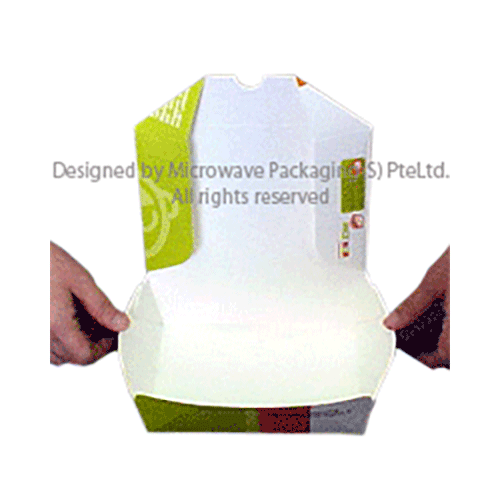

Box can be flatten occupying less space before putting into Rubbish Bins or Recycle Bins.
Hold both sides of the base of the box.
Pull the two sides outwards in opposite directions and press down at the same time. This will flatten out the base unit and the cover will automayically be brought forward and downwards.
When the base unit is fully flatten, the cover will be lying flat on top of the base unit. When this happens the flatten box is only 3mm thick.
Microwave Packaging Singapore not facilitates the sensation of possibilities imaginable; we also create the art of cooking inside the microwave oven, turning possibilities from unimaginable.
In any operations, especially in the F&B industry, packing food need to be Fast, fast, fast..because
Fast = more business
Fast = retaining maximum temperature of the food
Fast = maximum protection from ‘Atmospheric’ Contamination etc..
Closing a TiC.ToB* HealthyPack and ToC.ToB*M Lock series boxes can be done within 2 seconds
T Lock
J Lock
In Singapore, it is a common practice that consumers separately pay for containers whenever a take-away meal is purchased. Especially plastic containers – usually $0.20 to $0.50 each. Foam versions are free, thus the vendors lost a few cents on each 打包 sales.
By charging $0.20 to $0.50 for takeaways, vendors will make a few cents each. Therefore it is profitable to change to paper ones.
Printed with own graphics, logos and messages actually helps the vendors to publicities itself. Is like giving out a self-introduction or a name card and charge for it.
Eco-friendly:
While paper is naturally renewable, recyclable, biodegradable by itself,
Our source of materials comes from reforestation plantations (reforestation). Effectively means that the product (trees) are manufactured (planted) over and over again (reforestation). Recycling the same land over generations – just like a paddy field.
User Friendly:
The quality of material used by Microwave Packaging Singapore are also washable and reusable.
The design
It is an award winning design for use in microwave cooking. (From freezer direct to microwave).
Keep warm for hours.
Interlocking safety handlings and more….
A Dual Energy, Dual cooking system: Microwave energy cooks from inside out. Steam energy cooks from outside in. In double quick time, with maximum miniaturization
Intentionally Shielding Microwave Energy from cooking food within a pre-designated area or location.
Result: chilled section remaining cold.
Example: sushi or ice cream.
Steam
Aroma
Fresh
